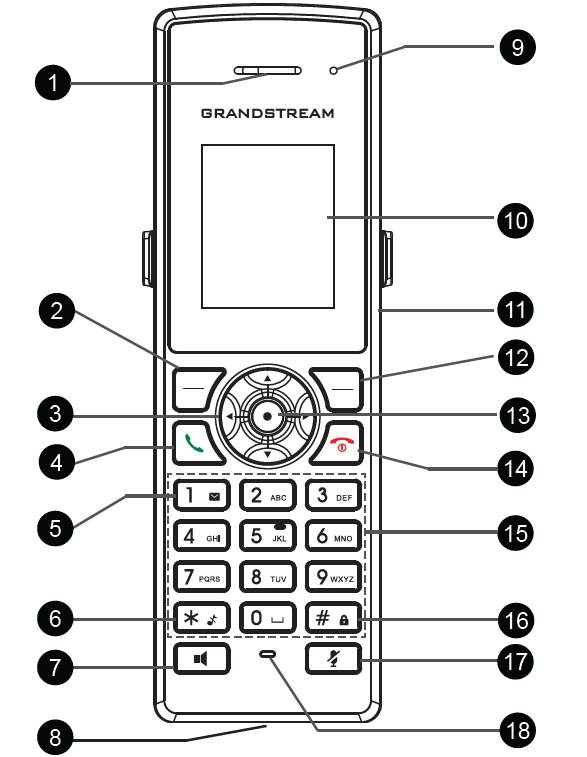

Key

Description

1

Earphone

Delivers audio output.

2,12

Left and right softkeys

Correspond to functions displayed on the LCD. These functions change depending on the current context.

3

4 Arrow key combination

Permits navigation through the displayed menu options.

4

Off-hook / Dial key

Enters dialing mode, or dials number entered.

5

1 / Voicemail

Provides quick access to your voicemail inbox when pressed.

6

* / Silent Mode Key

Activates or deactivates the mute feature.

7

Speaker key

The Speaker key activates or deactivates the hands-free speakerphone, allowing calls without holding the handset.

8

3.5 mm
headset jack

 Phone connector for the headphones/headsets.

9

LED Indicator

1 dual-color LED indicator indicating power, call, battery, message waiting…

10

Color LCD Screen

1.8 inch (128×160) color TFT LCD

11

Micro USB port

The charging port is used to connect a charger for powering the device and recharging the battery.

13

Menu/OK key

Selects the option chosen by the cursor or enter the main menu from the home screen.

14

On-hook or Power key

Ends calls, turns the handset on/off, and may return to the standby screen.

15

Alphanumeric keys

The Alphanumeric keys are used for dialing numbers, entering text, and navigating menus.

16

 # / Lock key

Locks keypad against unintentional entries when keep pressing #.

Press and hold the

# key for approximately 2 seconds to lock the keys. Press Unlock Softkey

and then # to unlock the keys.

17

Mute

Mute the microphone during the conversation.

18

Microphone

Captures your voice during calls.
