GSC3570 - Quick Installation Guide

  • Updated on August 24, 2022

The GSC3570 is a powerful Intercom phone for door control and 2-way intercom. It features a 7” 1024×600 touch screen LCD, integrated dual-band 802.11ac Wi-Fi, 100M network port with PoE, full duplex 2-way HD audio with advanced AEC, and innovative telephony functionalities. The GSC3570 is fully interoperable with nearly all major SIP platforms on the market and can be seamlessly integrated with Grandstream’s entire range of UC product lines including SIP based door systems, security cameras, IP PBXs, and video conferencing systems and services. This Intercom phone is the perfect choice for users looking for an integrated video control and two-way voice communication solution for their wall mount.

Precautions:

  • Do not attempt to open, disassemble, or modify the device.
  • Do not expose this device to temperatures outside range of -10 °C to 50 °C in operation and -20 °C to 60 °C in storage.
  • Do not expose the GSC3570 to environments outside of the following humidity range: 10-90% RH (non-condensing).
  • Do not power cycle your GSC3570 during system boot up or firmware upgrade. You may corrupt firmware images and cause the unit to malfunction

Package Contents

GSC3570 Setup

Device Installation

The GSC3570 can be mounted on the wall. Please refer to the following steps for Wall installation:

On-Wall Mount

  1. Locate the equipment holder on the desired position. Drill four holes on the wall referring to the positions of the ones on the metal bracket. Then, fix a Screw Anchor in each hole.
  1. Fix the metal bracket on the wall by Self-tapping Screws.
  1. Plug in the cables to the proper GSC3570 ports on the back.
  1. Align the position slots on device’s back with their correct placement on the Metal Bracket, then fix it by pushing Down.
  1. Plug in the Self-tapping Screws at bottom to attach the device to the metal bracket.

In-Wall Mount

  1. Locate the box screw holes and align them with the metal bracket holes. Then, fix a Self-tapping Screw on each hole.

Below is the supported Box dimensions:

  • 80mm x 80mm
  • 71mm x 115mm
  • 115mm x 115mm
  1. Plug in the cables to the proper GSC3570 ports on the back.
  1. Align the position slots on device’s back with their correct placement on the Metal Bracket, then fix it by pushing Down.
  1. Plug in the Self-tapping Screws at bottom to attach the device to the metal bracket.

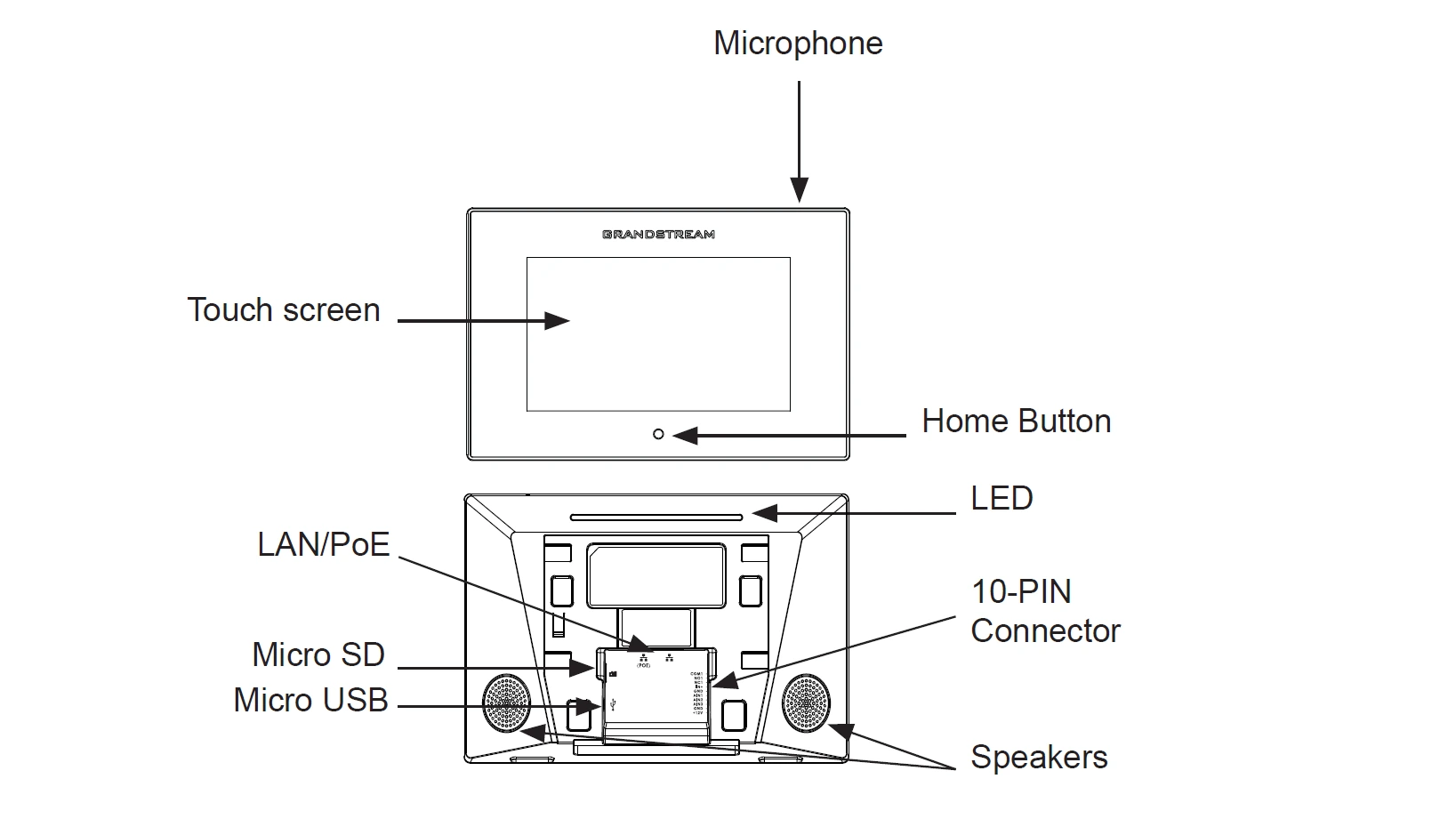

GSC3570 Ports

Jack

Port

Function

Remark

Pin

Signal

Color

J1

1

COM1

Orange

Alarm OUT

1 Relay output, normal open or close, max 125VAC/0.5A or max
DC 30V/2A

2

NO1

Yellow

3

NC1

Green

4

IN+

White

Alarm IN (Active)

Alarm isolated input, for voltage signal detection, IN+ connect the
sensor's signal output, please connect the GND to Alarm device's
GND or Negative of power. Active voltage range 9-15V

5

GND

Black

Alarm GND

Voltage reference for IN+, Switch signal reference for AIN (1/2/3)

6

AIN1

Blue

Alarm IN (Passive)

Alarm input, for button/door contacts switch signal detection.
Please connect the Switch/button to AIN (1/2/3) and GND

7

AIN2

Brown

8

AIN3

Gray

9

GND

Black

Power Supply

DC12V recommend, input voltage rang 9-15V Current at least 1A@12V

10

+12V

Red

J2

Network Port

  • PoE Supply

  • LAN port

Dual 10/100 Mbps Network ports: One is POE port with class AF
mode. The other one is a LAN port

J3

Micro SD Port

Data storage

Support microSD/SDHC/SDXC, up to 256G

J4

Micro USB Port

Data exchange

Data exchange port, Not recommended to use this port to power supply. If needed, please use 5V/2A adapter.

GSC3570 Configuration

Configure the GSC3570 using a Web Browser

  1. Ensure your device is powered up and connected to the Network.
  2. Slide to the second home page and press “Setting”.
  3. Select “Network Status” to check the IP address.
  4. Type the unit’s IP address in your PC browser. (See figure below).
  5. Enter admin’s username and password to access the configuration menu.
    (The factory default username is “admin” while the default random password can be found on the sticker at the back of the unit).

Configure the GSC3570 from the LCD Menu

  1. Make sure the device is idle.
  2. Slide to the second home page and press “Setting”. Browse the GSC3570 MENU for Status, Network information, Features and Basic/ Advanced Settings.
  3. Press “Home” Button to go back to Idle screen

The GNU GPL license terms are incorporated into the device firmware and can be accessed via the Web user interface of the device at my_device_ip/gpl_license. It can also be accessed here: https://www.grandstream.com/legal/opensource-software

To obtain a CD with GPL source code information please submit a written request to info@grandstream.com

The GSC3570 is not pre-configured to support or make emergency calls to any type of hospital, law enforcement agency, medical care unit (“Emergency Service(s)”) or any other kind of Emergency Service. You must make additional arrangements to access Emergency Services. It is your responsibility to purchase SIP-compliant Internet telephone service, properly configure the GSC3570 to use that service, and periodically test your configuration to confirm that it works as you expect. It is also your responsibility to purchase traditional wireless or landline telephone services to access Emergency Services.

GRANDSTREAM DOES NOT PROVIDE CONNECTIONS TO EMERGENCY SERVICES VIA THE GSC3570. NEITHER GRANDSTREAM NOR ITS OFFICES, EMPLOYEES OR AFFILIATES MAY BE HELD LIABLE FOR ANY CLAIM, DAMAGE, OR LOSS, AND YOU HEREBY WAIVE ANY AND ALL SUCH CLAIMS OR CAUSES OF ACTION ARISING FROM OR RELATING TO YOUR INABILITY TO USE THE GSC3570 TO CONTACT EMERGENCY SERVICES, AND YOUR FAILURE TO MAKE ADDITIONAL ARRANGEMENTS TO ACCESS EMERGENCY SERVICES IN ACCORDANCE WITH THE IMMEDIATELY PRECEDING PARAGRAPH.

For Certification, Warranty and RMA information, please
visit www.grandstream.com
