GDS3727 Quick Installation Guide

  • Updated on April 16, 2026 PDF Download

Introduction

GDS3727 is an advanced IP Video Door Station that functions as a high-definition IP surveillance camera and IP intercom, offering comprehensive access control and security monitoring for facilities of all sizes. It features a 152-degree wide-angle lens for full-area video coverage, AI ISP intelligent image processing, and includes a built-in IC & ID card reader, NFC chip, two microphones, and one speaker to enable seamless intercom communication. The device also supports alarm-in and alarm-out integration with existing security systems.

With support for Grandstream’s GDS Manager utility, the GDS3727 allows centralized management of card credentials, video streams, and configuration. Additionally, the free mobile access control app enables convenient setup, remote door unlocking, and real-time permission management.

Powered by an AI Image Sensor Processor and enhanced image algorithms, the GDS3727 delivers crisp 1080p Full HD video, maintaining excellent performance even under low-light conditions up to 3 meters. It supports PoE, features intelligent white LED illumination, motion and stay detection, and expandable DI/DO/RS485 interfaces for versatile integration.

Combined with Grandstream’s GSC357X Control Stations, GXV video phones, GS-Wave app, and GNS network storage, the GDS3727 forms a complete, scalable solution for access control, video intercom, and security surveillance.

Precautions:

  • Do not attempt to disassemble or modify the device.
  • Do not expose this device to temperatures outside the range of -30 °C to 60 °C for operating and -30°C to 70°C for storage.
  • Do not expose this device to environments outside of the following humidity range: 10-90% RH (non-condensing).
  • Do NOT power cycle the device during system boot up or firmware upgrade. You may corrupt
    firmware images and cause the unit to malfunction.

Package Contents

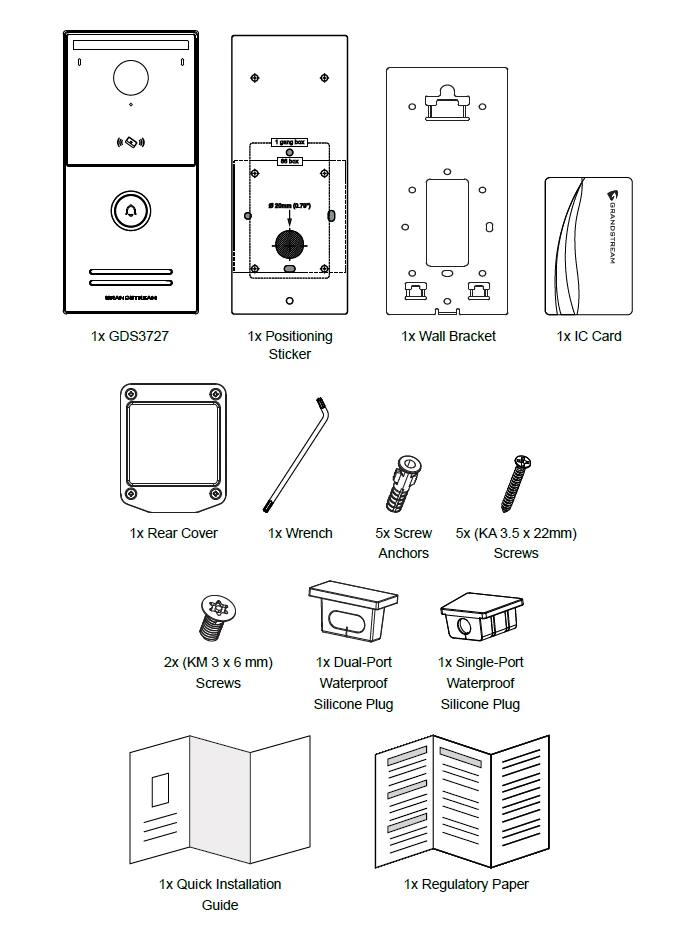

  • 1 x GDS3727.

  • 1 x Positioning Sticker.

  • 1 x Wall Bracket.

  • 1 x IC Card.

  • 1 x Rear Cover.

  • 1 x Wrench.

  • 5 x Anchors.

  • 5 x (KA 3.5 x 22mm) Screws.

  • 2 x (KM 3 x 6mm) Screws.

  • 1 x Dual-Port Waterproof Silicone Plug.

  • 1 x Single-Port Waterproof Silicone Plug.

  • 1 x Quick Installation Guide.

  • 1 x Regulatory Paper.

GDS3727 Package Content
Note

Check the package before installation. If you find anything missing, contact your system administrator.

Description of the GDS3727

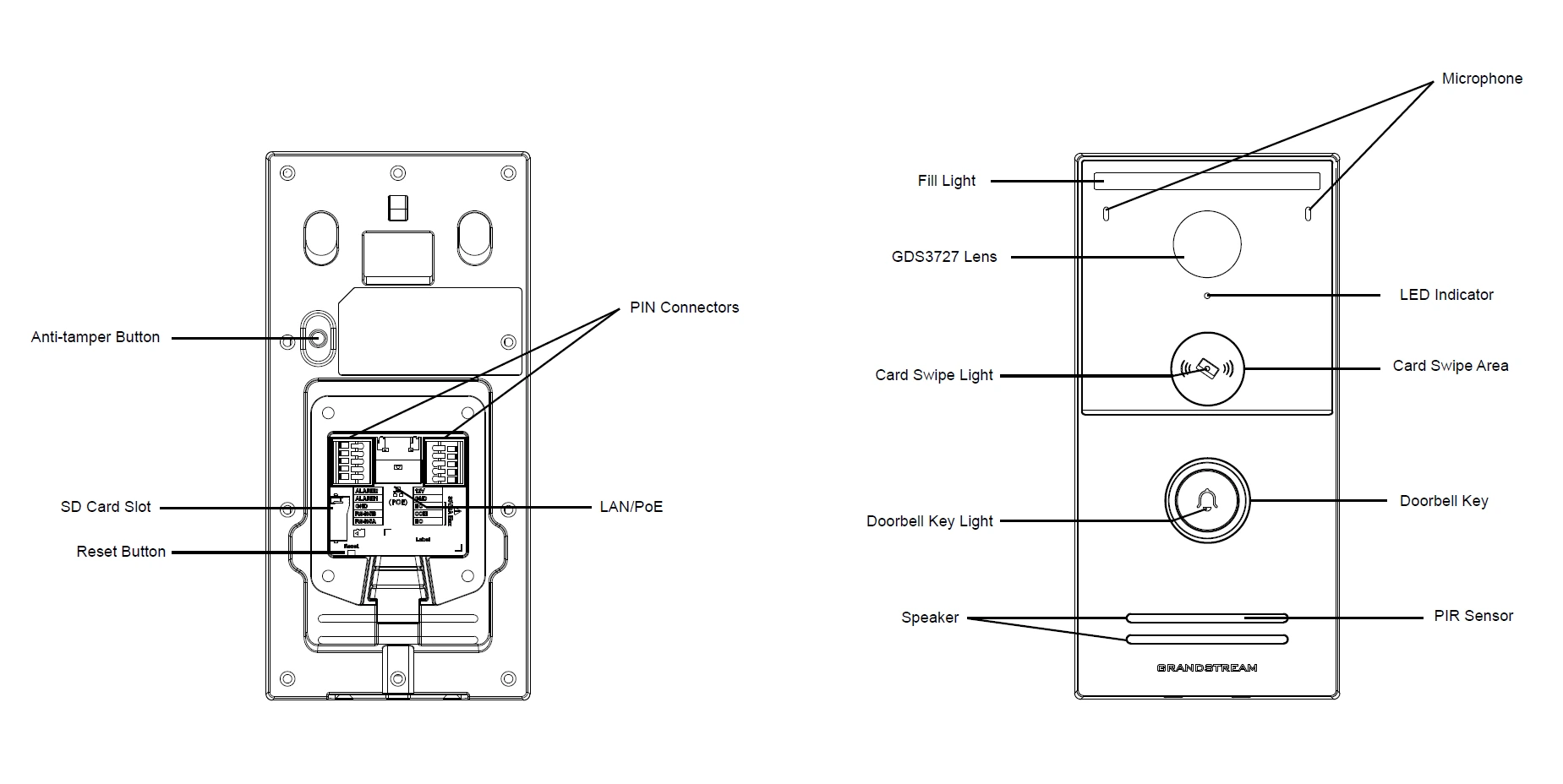

The figure below shows a description of the back and front views of the GDS3727 IP Video Door Station:

GDS3727 Front and Back View

GDS3727 Wall Mount Installation

This section provides detailed instructions for installing the GDS3727 IP Video Door system on a wall using one of the following methods:

  • With a 1-gang box
  • With an 86 box
  • Direct wall mount (no box)

A positioning sticker is included in the package to ensure accurate and aligned mounting across all installation types.

Please follow these steps carefully to ensure a weather-protected and tamper-resistant installation:

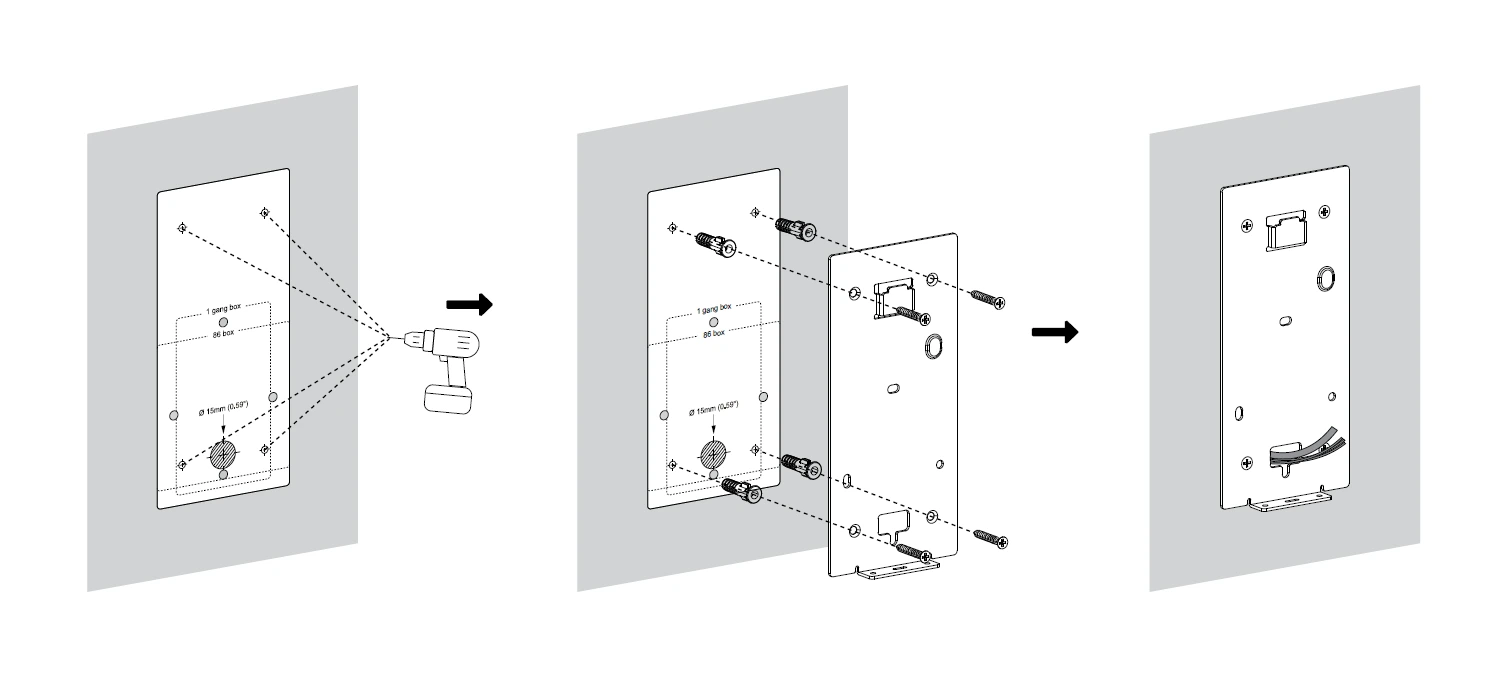

  1. Place the provided positioning sticker on the wall at the desired mounting height.
  2. Using the markings on the sticker as a guide, drill holes at the indicated positions.
Note

Drill patterns may vary depending on the selected installation method (1-gang box, 86 box, or direct wall mount).

  1. Insert the supplied screw anchors into the holes.
  2. Secure the wall-mounted bracket using the included KA 3.5 × 22mm self-tapping screws.

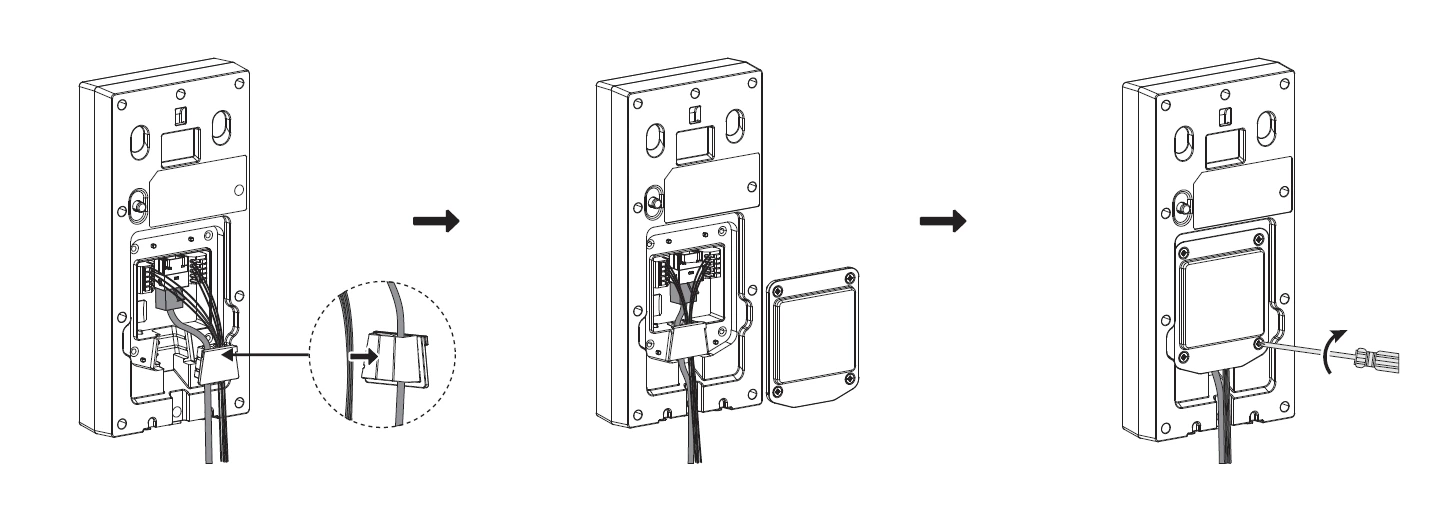

  1. Route the necessary cables (power, network, door strike, etc.) through the center opening of the bracket.
  2. Insert the waterproof silicone port plug into the cable exit area at the bottom of the rear cover to protect and organize the cables.
  3. Place the rear cover onto the bracket, aligning it with the screw holes.
  4. Secure the rear cover by firmly tightening all screws.

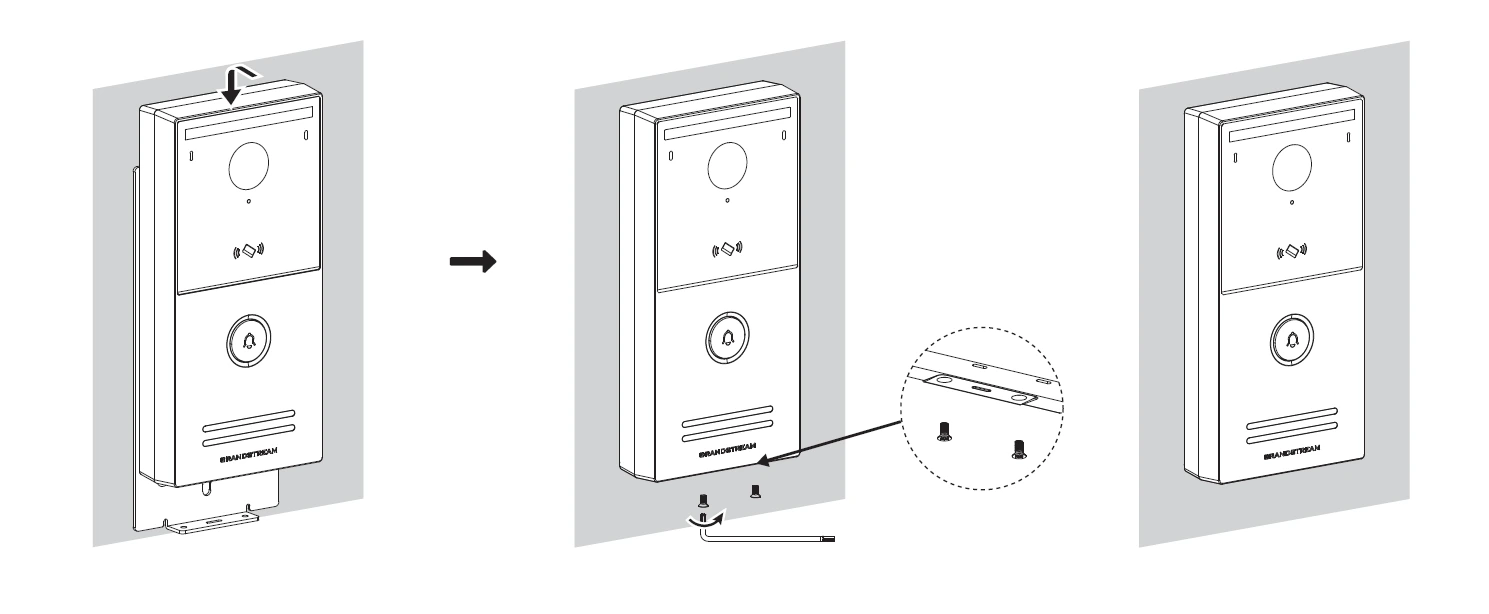

  1. Place the device onto the wall-mounted bracket.
  2. Use a wrench to tighten the KM 3 × 6mm screws, securing the door station to the bracket.

Powering the GDS3727

The GDS3727 IP Video Door Station can be powered using PoE or PSU:

Using PoE (Suggested)

  • Connect the other end of the RJ45 cable to the PoE switch.
  • A PoE injector can be used if a PoE switch is not available.
Powering the GDS3727 Using PoE

Using Power Supply Unit (Not Provided)

  • Connect the other end of the RJ45 cable to a network switch or router.

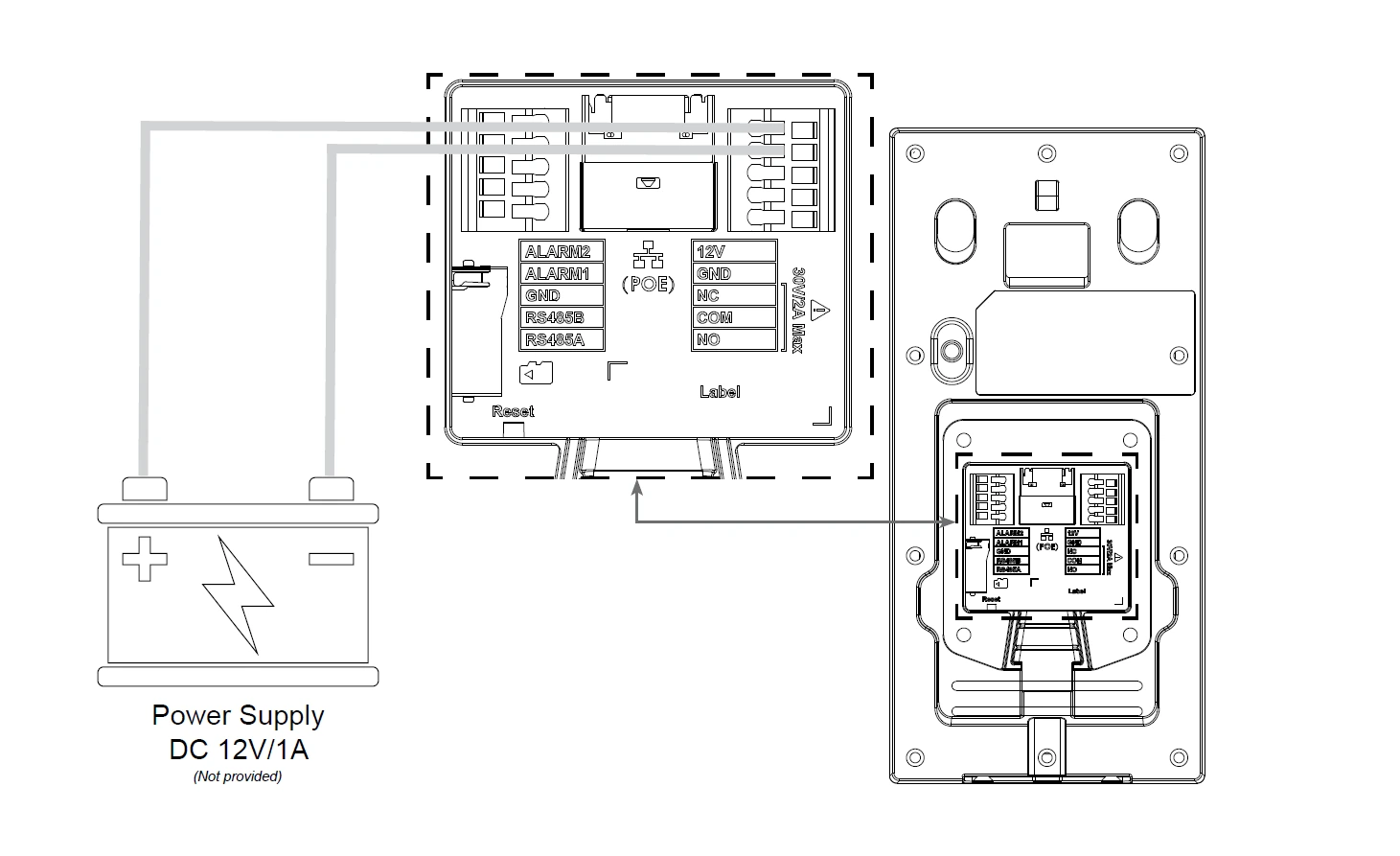

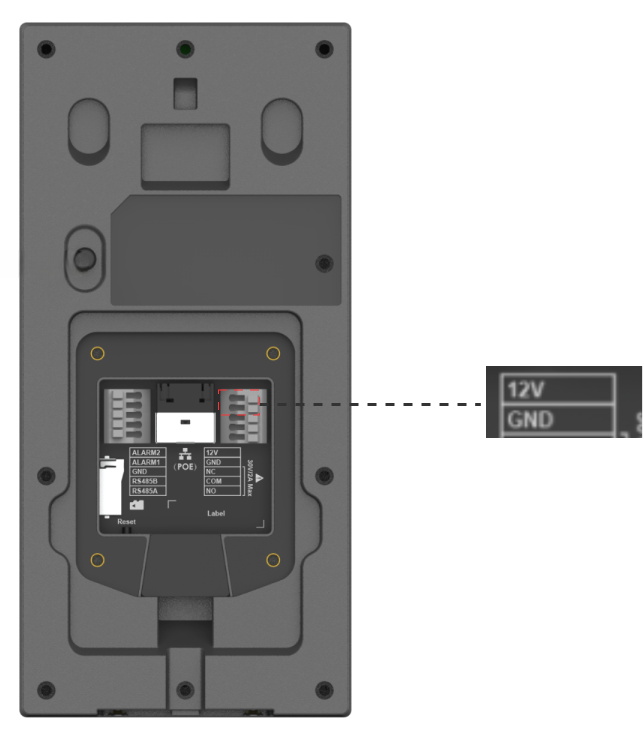

  • Connect a DC 12V power source via the related cable to the correct pins of the GDS3727.
Powering the GDS3727 Using Power Supply

Monitored Angles

To ensure optimal video coverage and intercom usability:

  • Mount the camera lens at 130 cm (51″) height from the ground.
  • Ideal face detection height is approximately 110 cm (43″).
  • Maintain a clear front space of at least 50 cm (20″).
  • The device provides a 127° horizontal and 70° vertical field of view, covering a wide area effectively.
  • Avoid direct exposure to strong light sources (e.g., sunlight) to prevent image distortion.

GDS3727 Wiring Connection

The GDS3727 provides a terminal block interface for power, relay control, alarm integration, and RS-485 communication. Below is a detailed explanation of each pin and its function:

GDS3727 Wiring Connection

Connector

Function

Note

Network Port(PoE)

Ethernet and PoE Supply

Single 10/100Mbps network port, support 802.3 af PoE power supply.

GND

Power Supply

DC 12V, 1A Minimum.

12V

NC

Relay Output

For “Fail Secure” (Locked when Power Lost) Strike, connect COM & NO.

For “Fail Safe” (Open when No Power) Magnetic Lock, connect COM & NC.

Relay: 30VDC/2A.

COM

NO

ALARM2

Alarm Input

Trigger input pins for external devices such as door sensors, exit buttons, or intrusion detectors.

ALARM1

GND

Alarm GND

Ground reference specifically for Alarm1 and Alarm2.

RS485B

RS485 Communication

Differential signal pair for serial communication using the RS485 protocol.

RS485A

SD Card Slot

Data Storage

Maximum capacity 256GB.

Reset Button

System Reset

Press and hold to restore to factory defaults.

PIR Sensor

Motion Detection

Detects motion 3–5 meters (10–16 feet) in front of the device.

Tamper Button

Tamper Detection

It prevents violent demolition.

GDS3727 Wiring Connection

Wi-Fi Deployment Setup

In cases where wiring the GDS3727 with an RJ45 cable to connect to the network is challenging or unavailable in certain deployments, the device offers an alternative way to integrate into the network through a Wi-Fi connection. This setup provides greater flexibility, reduces cabling requirements, and simplifies installation in indoor environments.

Note

Wi-Fi connectivity is supported only on the Grandstream GDS3727 model, which is primarily designed for indoor use.

Basically, the device is first configured to connect to a Wi-Fi network using a predefined SSID. Once configured, when the device is powered via PSU only (12V and GND pins) and rebooted, it will automatically reconnect to the saved Wi-Fi network, this eliminates the need for a permanent Ethernet connection.

Please follow the steps below to achieve this:

  • Connect the GDS3727 device to the network using an RJ45 cable.
  • Access the Web UI, then navigate to Network Settings → Wi-Fi Settings.

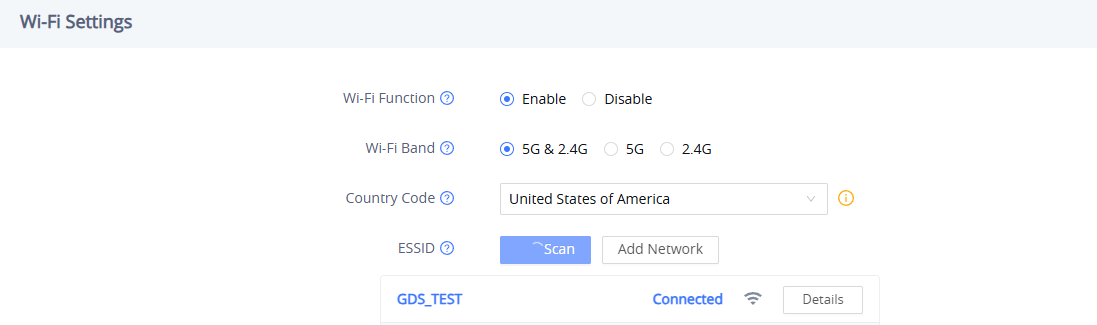

  • Enable Wi-Fi function, scan for available networks and connect the device to the desired Wi-Fi network.
  • Once connected, disconnect the Ethernet cable and power the device using only the PSU (12V + GND). Upon reboot, the device will automatically reconnect to the configured SSID.

This allows the device to remain fully connected to the network via Wi-Fi while being powered solely through the PSU pins. This is ideal for installations where Ethernet cabling is not practical.

Accessing the GDS3727

In order to access the GDS3727 unit, please refer to the sections below.

Notes:

  • To access the GDS3727 web interface, your computer must be connected to the same local network (subnet) as the GDS3727. (This is typically done by connecting your computer to the same router, hub, or network switch as the device.)
  • If no hub or switch is available (or if all ports are in use), you can also connect the GDS3727 directly to your PC’s Ethernet port using a network cable and configure both devices with compatible static IP addresses.

Accessing the GDS3727 via Dynamic IP (DHCP)

By default, the GDS3727 is configured to automatically obtain an IP address from a DHCP server, such as your network router. This method is suitable for most typical office or home setups.

To connect the GDS3727 to your network, please follow the instructions below:

  1. Use an Ethernet cable to connect the GDS3727 to a router, network switch, or access point with DHCP enabled.
  2. Power the device using one of the following methods:
    • PoE (Power over Ethernet): The GDS3727 supports IEEE 802.3af Class 3, allowing it to receive power and data over a single Ethernet cable.
    • Power Adapter: Connect a DC 12V power source via the related cable to the correct pins of the GDS3727.
  3. After the device powers on, it will receive an IP address from the DHCP server. You can locate this IP using the tools mentioned in the following sections.

Using GS Search to Retrieve the GDS3727 IP Address

GS search is a program that is used to detect and capture the IP address of the Grandstream facility management solution devices. Below are instructions for using the “GS Search” utility tool:

  1. Download the GS Search utility tool from the Grandstream website using the following link: GS_Search
  2. Double-click on the downloaded file, and the search window will appear.
  3. Click on
    button to start the discovery for Grandstream devices.
  4. The detected devices will appear in the output field like below.
GS Search Discovery

Using the GDS Manager Utility Tool to Retrieve the GDS3727 IP Address

Users can retrieve the IP address assigned to the GDS3727 from the DHCP server log or using the Grandstream GDS Manager after installing this free utility tool provided by Grandstream.

  1. Download the GDS Manager utility tool from the Grandstream website using the following link: https://www.grandstream.com/support/tools
  2. Install and run the Grandstream GDS Manager, a client/server architecture application. The server should be running first, then GDSManager (client) later:

3. On the GDS Manager, access Device 🡪 Search and click on the button to start device detection

4. The detected devices will appear in the output field like below:

GDS3727 Detection

Accessing the GDS3727 via Static IP

If there is no DHCP server in the network, or the GDS3727 does not get an IP from the DHCP server, users can connect the GDS3727 to a computer directly, using a static IP to configure the GDS3727.

If no DHCP server is available or the DHCP request times out (after 3 minutes), the GDS3727 will use its default static IP address: 192.168.0.160

  1. Connect the Ethernet cable from GDS3727 to the computer network port directly.
  2. Configure the computer using Static IP: 192.168.0.XXX (1<XXX<255, except for 160) and configure the “Subnet mask” to “255.255.255.0”. Leave the “Default Gateway” to “Blank” like below:
Static IP on Windows

4. Power on the GDS3727, using a PoE injector or external DC power.

5. Enter 192.168.0.160 in the address bar of the browser to access the GDS3727 Web UI.

GDS3727 Web UI Login

Once the GDS3727 is accessed through its IP address (whether static or dynamically assigned), the embedded Web User Interface (Web UI) will load in the browser. This interface allows administrators to configure and manage the device.

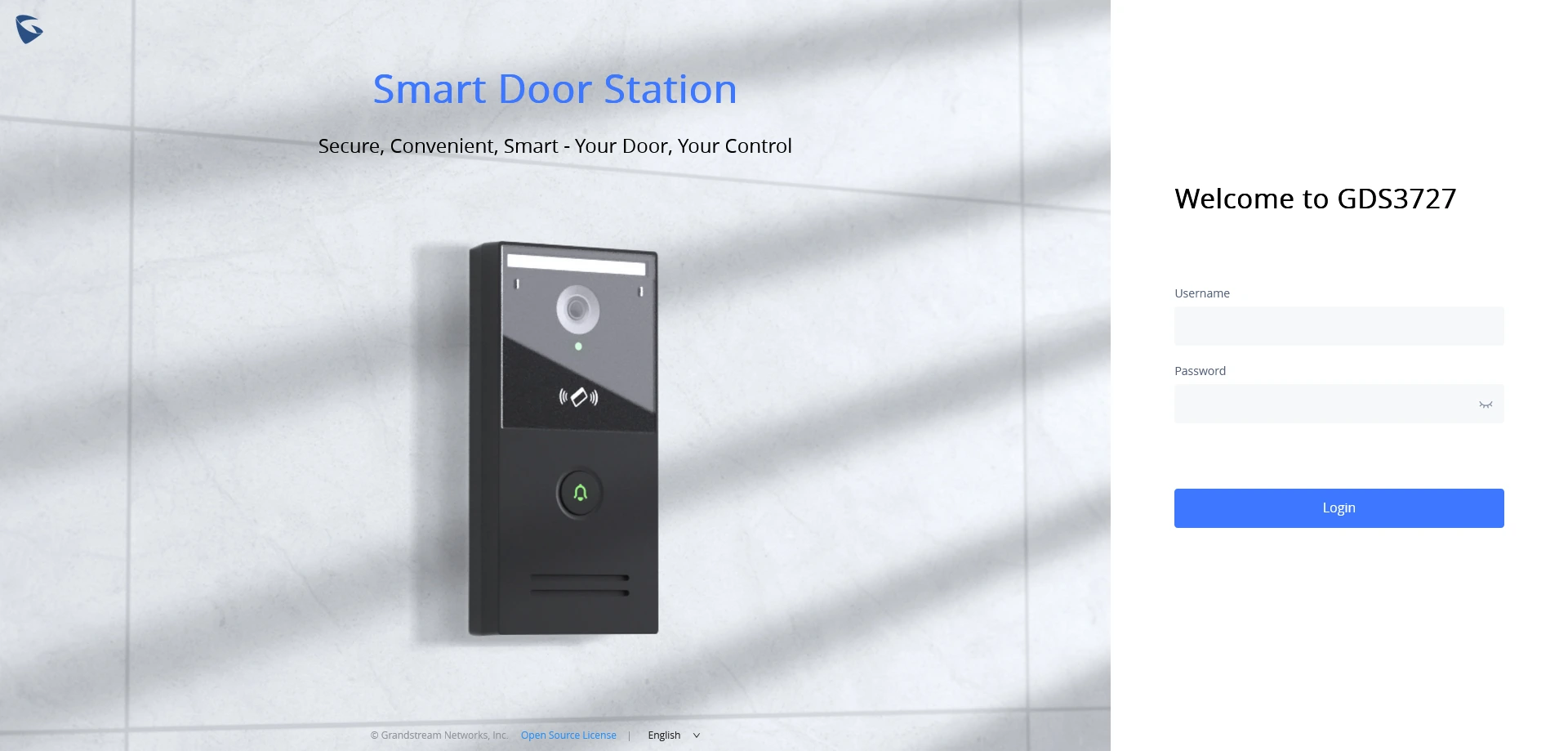

Upon accessing the Web UI, a login screen will appear prompting for credentials:

GDS3727 Web UI Login
